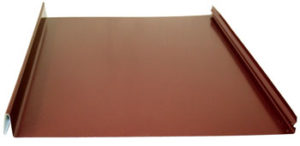

1″ Mini Batten Standing Seam

DCSM 1" Mini-Batten

Specifications

ApplicationArchitectural, Residential, and Commercial panels
Radius ApplicationPanels and battens can be formed for installation on curved substrates, convex or concave
CoveragePanels are available in various widths ranging from 14″ to 24″, with pan and batten seam height of 1″.
Minimum SlopeRecommended slope 2/12 or greater.
SubstrateRecommended subsate 1/2″ – 5/8” plywood with a minimum 30 lb. underlayment.
LengthPanels are continuous lengths from eave to ridge.
Fastening SystemConcealed clip and fastener system. Recommended 2 screws per clip with a maximum clip spacing of 12” o/c or 16″ o/c depending on panel width.
Fasteners#10 x 1” flat head screws.
MaterialsPanels are fabricated from 24 gauge Galvalume*, .032 Aluminum, 16 oz. Copper
Coatings & Finishes24 gauge Galvalume* and .032 Aluminum pre-painted panels are available in a variety of colors and coated with a full-strength Kynar 500
Warranty20, 25, and 35 year manufacturer warranties available.
Approvals & TestingClass A Fire Rating (UL-790), Florida Product Approval, Quality Assurance Program



ADDITIONAL PANEL INFORMATION

  • All flashings and accessories are fabricated from the same coil stock as the panels.
  • Standing Seam orders are all inclusive: panels, clips, screws, and all flashings are incorporated into one per square price.
  • DCSM 1″ Mini Batten is most commonly used on curved and radius projects. Available in a variety of metals and colors.

* Galvalume sheet uses an aluminum (55%) – zinc (45%) alloy coating that offers greater corrosive resistance, higher temperature oxidation resistance, and higher heat reflectivity than standard galvanized steel.

Kynar 500 is a premium fluorocarbon coating, produced with full strength Kynar 500 resin. This affords maximum exterior durability due to its outstanding resistance to ultraviolet radiation. These are the highest quality finishes available.
